UHF-S (Narrow Slot) Low Smoke Halogen Free Wiring Ducts

slotted cable duct
UHF-S (Narrow Slot) Low Smoke Halogen Free Wiring Ducts

Materials: PC+ABS


Feature:

  • Flame-retardant, self-extinguishing according to UL94-V0.

  • They offer good insulation properties and are resistant to chemicals, making them suitable for a wide range of applications.

  • Operating Temperature: -25°C to 115°C.

  • EASCO offers a wide range of Wiring Ducts in materials that are compliant with the smoke generation and toxicity requirements of the EN 45545-2 European Railway Standards for fire safety classes R22 - R23 and Hazard Levels HL1 - HL2 - HL3.

  • PC/ABS blend containing NO Bromide, NO Chlorine and NO Fluorine.

  • Standard Length: 2 m

  • Color: Gray(RAL7035),Blue(RAL5015), Black.

  • Base perforation according to EN 50085-2-3


Double scoreline:

  • lower scoreline allows easy removal of the wall section

  • upper scoreline enables the fingers to be broken by hand without the use of tools

UL
CE
EAC
UKCA
  • DOWNLOADS
  • VIDEOS
  • ENQUIRE
Enquire for this product
13901848686

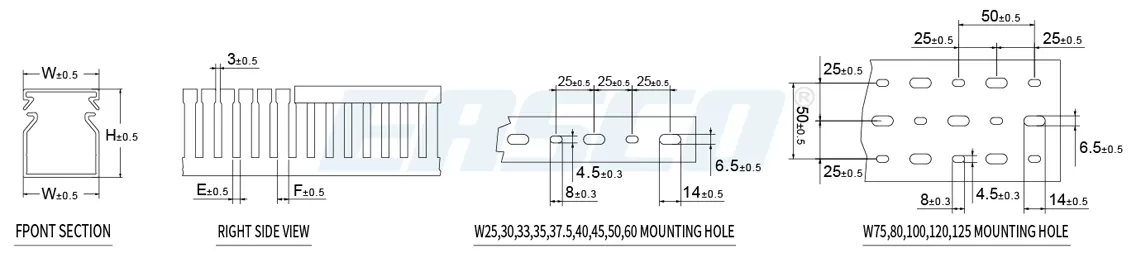

Technical Drawing of UHF-S (Narrow Slot) Low Smoke Halogen Free Wiring Ducts


Drawing of UHF-S (Narrow Slot) Low Smoke Halogen Free Wiring Ducts


Specifications of UHF-S (Narrow Slot) Low Smoke Halogen Free Wiring Ducts


Article No.Part No.Wd. (W)Ht. (H)Slot Wd. (E)Finger Wd.(F)MaterialPkg Qty (pcs)
A0101.005.0047UHF025025S252557.5PC+ABS90
A0101.005.0048UHF040025S402557.5PC+ABS60
A0101.005.0049UHF025030S253057.5PC+ABS72
A0101.005.0050UHF030030S303057.5PC+ABS60
A0101.005.0051UHF025375S2537.557.5PC+ABS60
A0101.005.0052UHF375375S37.537.557.5PC+ABS50
A0101.005.0053UHF050375S5037.557.5PC+ABS50
A0101.005.0054UHF025040S254057.5PC+ABS60
A0101.005.0055UHF040040S404057.5PC+ABS50
A0101.005.0056UHF060040S604057.5PC+ABS40
A0101.005.0057UHF080040S804057.5PC+ABS32
A0101.005.0058UHF100040S1004057.5PC+ABS28
A0101.005.0059UHF025050S255057.5PC+ABS50
A0101.005.0060UHF375050S37.55057.5PC+ABS50
A0101.005.0061UHF050050S505057.5PC+ABS40
A0101.005.0062UHF075050S755057.5PC+ABS26
A0101.005.0063UHF100050S1005057.5PC+ABS20
A0101.005.0064UHF125050S1255057.5PC+ABS16
A0101.005.0065UHF025060S256057.5PC+ABS42
A0101.005.0066UHF030060S306057.5PC+ABS36
A0101.005.0067UHF040060S406057.5PC+ABS40
A0101.005.0068UHF060060S606057.5PC+ABS30
A0101.005.0069UHF080060S806057.5PC+ABS22
A0101.005.0070UHF100060S1006057.5PC+ABS18
A0101.005.0071UHF120060S1206057.5PC+ABS16
A0101.005.0072UHF045065S456557.5PC+ABS42
A0101.005.0073UHF025075S257557.5PC+ABS50
A0101.005.0074UHF375075S37.57557.5PC+ABS28
A0101.005.0075UHF050075S507557.5PC+ABS24
A0101.005.0076UHF075075S757557.5PC+ABS16
A0101.005.0077UHF100075S1007557.5PC+ABS12
A0101.005.0078UHF125075S1257557.5PC+ABS10
A0101.005.0079UHF025080S258057.5PC+ABS50
A0101.005.0080UHF035080S358057.5PC+ABS36
A0101.005.0081UHF040080S408057.5PC+ABS32
A0101.005.0082UHF060080S608057.5PC+ABS20
A0101.005.0083UHF080080S808057.5PC+ABS16
A0101.005.0084UHF100080S1008057.5PC+ABS12
A0101.005.0085UHF120080S1208057.5PC+ABS10
A0101.005.0086UHF033100S3310057.5PC+ABS36
A0101.005.0087UHF040100S4010057.5PC+ABS28
A0101.005.0088UHF050100S5010057.5PC+ABS24
A0101.005.0089UHF060100S6010057.5PC+ABS20
A0101.005.0090UHF075100S7510057.5PC+ABS16
A0101.005.0091UHF080100S8010057.5PC+ABS16
A0101.005.0092UHF100100S10010057.5PC+ABS12
