Omega3 Steel Din Rail

Material: Galvanized steel.

Zinc plating color: Blue white or Yellow , optional.

Size: 35x15mm


Features:

  • The guide rail makes the installation of electrical equipment significantly faster and easier than installing individual components on the cabinet body.

  • The guide rail helps save space in electrical panels and junction boxes by reducing the number of required installation hardware.

  • The guide rail provides a universal standard that most circuit breakers, PLCs, and wiring terminals are designed to meet.

  • The rails allow for easy installation and uninstallation of components. It is also much easier to make minor adjustments to the position of the guide rail installation components.

  • Guides help simplify wiring design by providing centralized locations through which wiring and connectors can pass.

CE
ROHS
  • DOWNLOADS
  • VIDEOS
  • ENQUIRE
Enquire for this product
13901848686

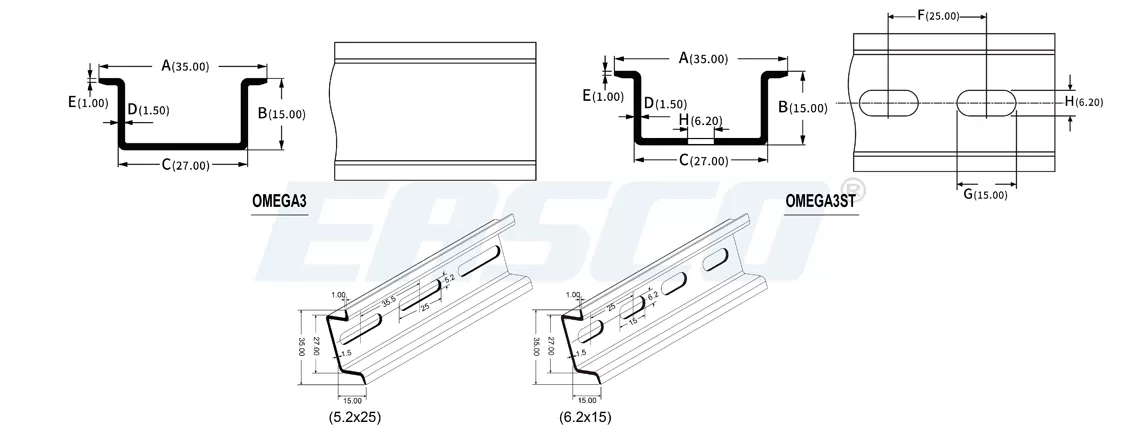

Technical Drawing of Omega3 Steel Din Rail


Technical Drawing of Omega3 Steel Din Rail

Specifications of Omega3 Steel Din Rail


Article No.Part No.ABCDEFGHPkg Qty (pcs)
A0103.002.0001OMEGA3(Unperforated Zinc-Plated Steel )3515271.51---30
A0103.002.0002OMEGA3ST-6.2x15(Perforated Zinc-Plated Steel )3515271.5125156.230
A0103.002.0003OMEGA3ST-5.2x25(Perforated Zinc-Plated Steel )3515271.5135.5255.230
A0103.002.0004OMEGA3(Non-porous colored zinc)3515271.51---30
A0103.002.0005OMEGA3ST-6.2x15(Perforated colored zinc)3515271.5125156.230
A0103.002.0006OMEGA3ST-5.2x25(Perforated colored zinc)3515271.5135.5255.230
