Omega2AL Aluminum Din Rail

din rail factory
Omega2AL Aluminum Din Rail

Material: Aluminum

Color: Silver.

Size: 35x7.5mm


Features:

  • The guide rail makes the installation of electrical equipment significantly faster and easier than installing individual components on the cabinet body.

  • The guide rail helps save space in electrical panels and junction boxes by reducing the number of required installation hardware.

  • The guide rail provides a universal standard that most circuit breakers, PLCs, and wiring terminals are designed to meet.

  • The rails allow for easy installation and uninstallation of components. It is also much easier to make minor adjustments to the position of the guide rail installation components.

  • Guides help simplify wiring design by providing centralized locations through which wiring and connectors can pass.


CE
ROHS
  • DOWNLOADS
  • VIDEOS
  • ENQUIRE
Enquire for this product
13901848686

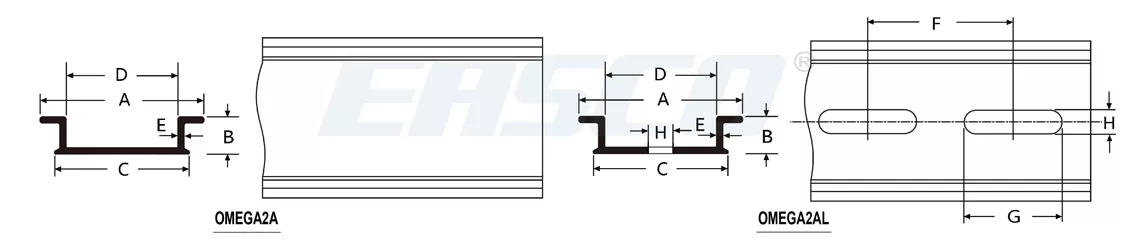

Technical Drawing of Omega2AL Aluminum Din Rail


Technical Drawing of Omega2AL Aluminum Din Rail

Specifications of Omega2AL Aluminum Din Rail


Article No.Part No.DetailsABCDEFGHPkg Qty (pcs)
A0103.005.0001OMEGA2AThick and nonporous 35x7.5mm357.530.7261.1---50
A0103.005.0002OMEGA2ALThe 35x7.5mm thickened hole357.530.7261.110255.250


Contact us today for your cable termination products, cable accessories or tooling requirements.
13901848686
