Material: Nylon PA66 + EPDM Rubber
Thread: Metric
Working Temperature: -40℃ ~ +105℃. short time +160℃
Waterproof: IP68
Color: White, Black, Other colors upon request.
Fire Resistant: UL94-V2
Specification Met: CE RoHS

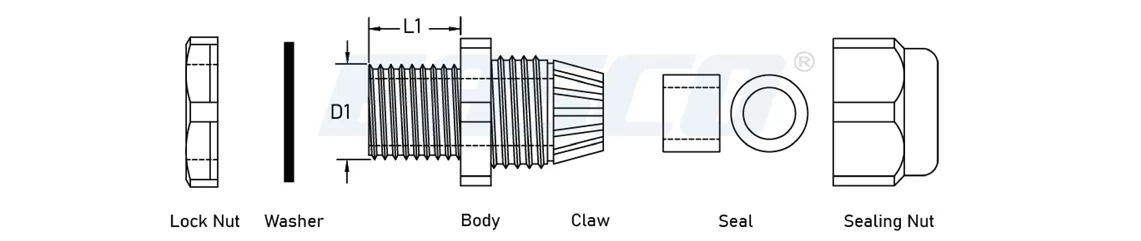

| Article No. | Part No. | Cable Min Range | Cable Max Range | Thread O.D.(D1) | Thread Length(L1) | Spanner Size(mm) | Installing Hole (mm) |
| A0107.000.0001 | M8X1.25-5 | 2 | 5 | 8 | 7.5 | 13/12 | 8~8.3 |
| A0107.000.0002 | M10X1.5-6 | 3 | 6 | 10 | 8 | 15/12 | 10~10.3 |
| A0107.000.0003 | M12X1.5-8 | 4 | 8 | 12 | 9 | 19/18 | 12~12.3 |
| A0107.000.0004 | M12X1.5-6.5 | 3 | 6.5 | 12 | 8 | 18/16 | 12~12.3 |
| A0107.000.0005 | M12X1.5-5.5 | 3 | 5.5 | 12 | 9 | 19/18 | 12~12.3 |
| A0107.000.0006 | M16X1.5-10 | 6 | 10 | 16 | 9 | 22/22 | 16~16.3 |
| A0107.000.0007 | M16X1.5-8 | 4 | 8 | 16 | 9 | 22/19 | 16~16.3 |
| A0107.000.0008 | M16X1.5-5.5 | 3 | 5.5 | 16 | 9 | 22/19 | 16~16.3 |
| A0107.000.0009 | M18X1.5-10 | 6 | 10 | 18 | 9 | 24/22 | 18~18.3 |
| A0107.000.0010 | M18X1.5-8 | 4 | 8 | 18 | 9 | 24/22 | 18~18.3 |
| A0107.000.0011 | M20X1.5-14 | 8.5 | 14 | 20 | 10 | 27/27 | 20~20.3 |
| A0107.000.0012 | M20X1.5-11 | 5 | 11 | 20 | 10 | 27/27 | 20~20.3 |
| A0107.000.0013 | M20X1.5-12.5 | 7 | 12.5 | 20 | 9 | 27/24 | 20~20.3 |
| A0107.000.0014 | M25X1.5-18 | 12.5 | 18 | 25 | 10 | 33/33 | 25~25.4 |
| A0107.000.0015 | M25X1.5-13 | 7 | 13 | 25 | 10 | 33/27 | 25~25.4 |
| A0107.000.0016 | M32X1.5-25 | 18 | 25 | 32 | 12 | 41/41 | 32~32.4 |
| A0107.000.0017 | M32X1.5-22 | 14 | 22 | 32 | 12 | 41/41 | 32~32.4 |
| A0107.000.0018 | M40X1.5-32 | 24 | 32 | 40 | 15 | 50/50 | 40~40.4 |
| A0107.000.0019 | M40X1.5-25 | 18 | 25 | 40 | 15 | 50/50 | 40~40.4 |
| A0107.000.0020 | M50X1.5-41 | 31 | 41 | 50 | 20 | 62/62 | 50~50.4 |
| A0107.000.0021 | M50X1.5-32 | 25 | 32 | 50 | 20 | 62/62 | 50~50.4 |
| A0107.000.0022 | M63X1.5-45 | 35 | 45 | 63 | 20 | 75/65 | 63~63.4 |
| A0107.000.0023 | M63X1.5-38 | 29 | 38 | 63 | 20 | 75/65 | 63~63.4 |
