GR Open Slot Wiring Ducts

Material: Polyvinylchloride (PVC)

Self-extinguishing rigid PVC Class 1 (UL94-V0)

Temperature: +5°F to +140°F (-15°C to +60°C)

Cover: Non-slip cover with excessive flush cover design with

Smooth fingers: Will not hurt the installer or damage wires or cables

Colours: Grey (White, Blue and Black available on request)

Compliance: RoHS; REACH

Specifications: CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL

Standard mounting base slots to DIN 43659

UL
CE
EAC
UKCA
  • DOWNLOADS
  • VIDEOS
  • ENQUIRE
Enquire for this product
13901848686

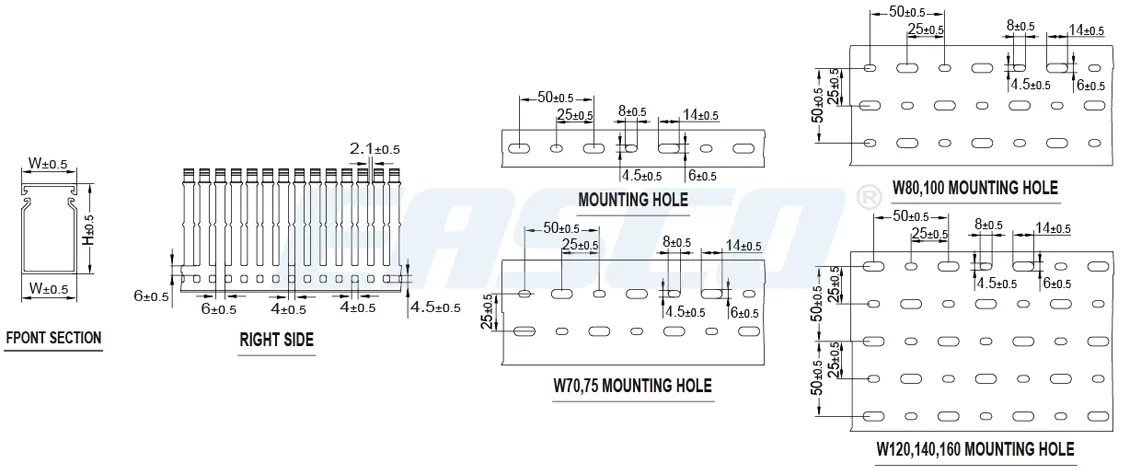

Technical Drawing of GR Open Slot Wiring Ducts


Technical Drawing of GR Open Slot Wiring Ducts

Specifications of GR Open Slot Wiring Ducts


Article No.Part No.Wd. (W)Ht. (H)Porous SizeMaterialPkg Qty (pcs)
A0101.035.0001GR256025604x4.5PVC42
A0101.035.0002GR306030604x4.5PVC60
A0101.035.0003GR356035604x4.5PVC50
A0101.035.0004GR406040604x4.5PVC42
A0101.035.0005GR456045604x4.5PVC42
A0101.035.0006GR506050604x4.5PVC36
A0101.035.0007GR556055604x4.5PVC36
A0101.035.0008GR606060604x4.5PVC30
A0101.035.0009GR806080604x4.5PVC22
A0101.035.0010GR10060100604x4.5PVC18
A0101.035.0011GR258025804x4.5PVC32
A0101.035.0012GR308030804x4.5PVC40
A0101.035.0013GR358035804x4.5PVC36
A0101.035.0014GR408040804x4.5PVC32
A0101.035.0015GR458045804x4.5PVC28
A0101.035.0016GR508050804x4.5PVC24
A0101.035.0017GR558055804x4.5PVC24
A0101.035.0018GR608060804x4.5PVC20
A0101.035.0019GR808080804x4.5PVC16
A0101.035.0020GR10080100804x4.5PVC12
A0101.035.0021GR12080120804x4.5PVC10
A0101.035.0022GR14080140804x4.5PVC8
A0101.035.0023GR25100251004x4.5PVC50
A0101.035.0024GR33100331004x4.5PVC36
A0101.035.0025GR40100401004x4.5PVC28
A0101.035.0026GR48100481004x4.5PVC24
A0101.035.0027GR50100501004x4.5PVC24
A0101.035.0028GR60100601004x4.5PVC20
A0101.035.0029GR70100701004x4.5PVC16
A0101.035.0030GR75100751004x4.5PVC16
A0101.035.0031GR80100801004x4.5PVC16
A0101.035.0032GR1001001001004x4.5PVC12
A0101.035.0033GR1201001201004x4.5PVC8
A0101.035.0034GR1601001601004x4.5PVC8
