EN Series Bus Bar Insulators

busbar isolator
EN Series Bus Bar Insulators

Material: BMC (Bough Moulding Compound) SMC (Sheet Moulding Compound)

Insert Material: Copper

Working Temperature: -40℃ ~ +140℃

Remark: Special color, insert, material is upon request by client with reasonable quantities.


CE
ROHS
  • DOWNLOADS
  • VIDEOS
  • ENQUIRE
Enquire for this product
13901848686

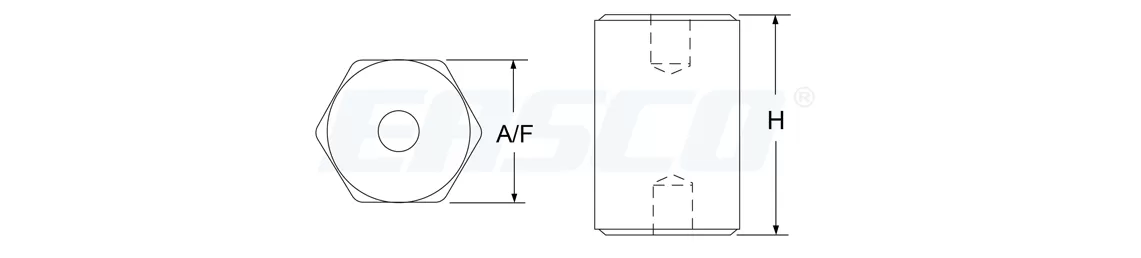

Technical Drawing of EN Series Bus Bar Insulators


Technical Drawing of EN Series Bus Bar Insulators

Specifications of EN Series Bus Bar Insulators


Article No.Part No.A/F(mm)H(mm)Torgue Strength (FT LBS)Screw (mm)Screw Depth (mm)Material
A0114.008.0001EN2526251069BMC
A0114.008.0002EN3026301069BMC
A0114.008.0003EN3226321069BMC
A0114.008.0004EN4026401069BMC
A0114.008.0005EN1004510025,4010,1215,18BMC
A0114.008.0006EN1104511025,4010,1215,18BMC
A0114.008.0007EN1204512025,4010,1215,18BMC
