Strain Relief Cable Glands

Material: Nylon PA66 + EPDM Rubber

Working Temperature: -40℃ ~ +105℃. short time +160℃

Waterproof: IP68

Color: White, Black, Other colors upon request.

Fire Resistant: UL94-V2

Specification Met: CE RoHS

Feature: Strain relief protect cable from breakage or bending.

CE
ROHS
  • DOWNLOADS
  • VIDEOS
  • ENQUIRE
Enquire for this product
13901848686

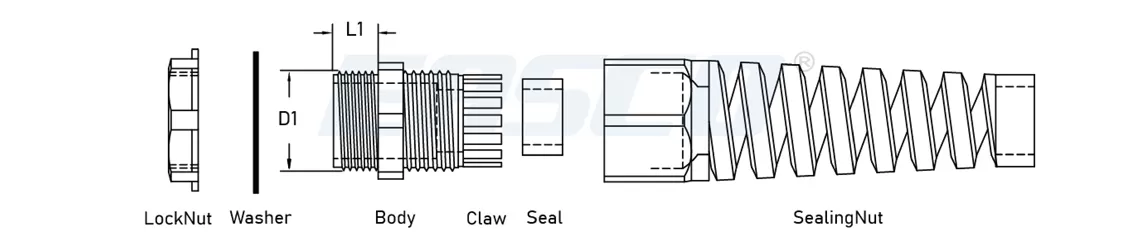

Technical Drawing of Strain Relief Cable Glands


Technical Drawing of Strain Relief Cable Glands

Specifications of Strain Relief Cable Glands


Article No.Part No.Cable Min RangeCable Max RangeThread O.D.(D1)Thread Length(L1)Spanner Size(mm)Installing Hole (mm)
A0107.006.0027PG7-6.536.512.51519/1512.5~12.8
A0107.006.0028PG7-5.535.512.51519/1912.5~12.8
A0107.006.0029PG7-84812.51519/1512.5~12.8
A0107.006.0030PG9-84815.21522/1915.2~15.5
A0107.006.0031PG9-5.535.515.21522/1915.2~15.5
A0107.006.0032PG11-1061018.61524/2218.6~18.9
A0107.006.0033PG11-74718.61524/2218.6~18.9
A0107.006.0034PG13.5-1271220.41527/2420.4~20.7
A0107.006.0035PG13.5-95920.41527/2420.4~20.7
A0107.006.0036PG16-148.51422.51530/2722.5~22.8
A0107.006.0037PG16-1171122.51530/2722.5~22.8
A0107.006.0038PG21-18121828.31535/3328.3~28.7
A0107.006.0039PG21-16111628.31535/3328.3~28.7
A0107.006.0014M12X1.5-84812919/1812~12.3
A0107.006.0048M12X1.5-6.536.5121518/1612~12.3
A0107.006.0049M12X1.5-5.535.5121519/1812~12.3
A0107.006.0051M16X1.5-10610161522/2216~16.3
A0107.006.0050M16X1.5-848161522/1916~16.3
A0107.006.0052M16X1.5-5.535.5161522/1916~16.3
A0107.006.0053M18X1.5-10610181524/2218~18.3
A0107.006.0021M18X1.5-84818924/2218~18.3
A0107.006.0055M20X1.5-148.514201527/2720~20.3
A0107.006.0023M20X1.5-11511201027/2720~20.3
A0107.006.0056M20X1.5-12.5712.5201527/2420~20.3
A0107.006.0058M25X1.5-1812.518251533/3325~25.4
A0107.006.0026M25X1.5-13713251033/2725~25.4
A0107.006.0040G1/4-84813.15791913.2~13.4
A0107.006.0041G1/4-5.535.513.15791913.2~13.4
A0107.006.0042G3/8-1061016.6621022/2216.7~16.9
A0107.006.0043G3/8-74716.6621022/2216.7~16.9
A0107.006.0044G1/2-1261220.9551027/2421~21.2
A0107.006.0045G1/2-95920.9551027/2421~21.2
A0107.006.0046G3/4-1812.51826.4411233/3326.5~26.8
A0107.006.0047G3/4-1371326.4411233/3326.5~26.8
A0107.006.0054M18X1.5-737181524/1918~18.3
A0107.006.0057M20X1.5-10510201527/2420~20.3
A0107.006.0059M25X1.5-16916251533/3325~25.4
A0107.006.0060NPT1/4-84813.157919-
A0107.006.0061NPT1/4-5.535.513.157919-
A0107.006.0062NPT3/8-1061016.6621022-
A0107.006.0063NPT3/8-74716.6621022-
A0107.006.0064NPT1/2-1261220.9551027-
A0107.006.0065NPT1/2-95920.9551027-
A0107.006.0066NPT3/4-1812.51826.4411533-
A0107.006.0067NPT3/4-1371326.441I533-
A0107.006.0068NPT1-25182533.51741-
A0107.006.0069NPT1-1281233.51741-
A0107.006.0070NPT1-1/4-322432421750-
A0107.006.0071NPT1-1/4-251825421750-
