Materials: PC+ABS
Feature:
Flame-retardant, self-extinguishing according to UL94-V0.
They offer good insulation properties and are resistant to chemicals, making them suitable for a wide range of applications.
Operating Temperature: -25°C to 115°C.
EASCO offers a wide range of Wiring Ducts in materials that are compliant with the smoke generation and toxicity requirements of the EN 45545-2 European Railway Standards for fire safety classes R22 - R23 and Hazard Levels HL1 - HL2 - HL3.
PC/ABS blend containing NO Bromide, NO Chlorine and NO Fluorine.
Standard Length: 2 m.
Color: Gray(RAL7035),Blue(RAL5015), Black.
Base perforation according to EN 50085-2-2.

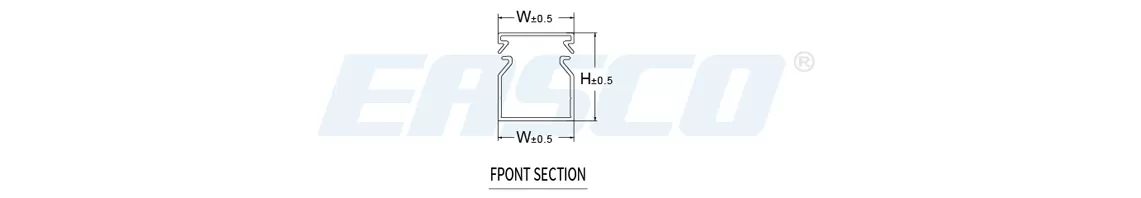

| Article No. | Part No. | Wd. (W) | Ht. (H) | Material | Pkg Qty (pcs) |
| A0101.036.0001 | SDRHF025025 | 25 | 25 | PC+ABS | 90 |
| A0101.036.0002 | SDRHF040025 | 40 | 25 | PC+ABS | 60 |
| A0101.036.0003 | SDRHF025030 | 25 | 30 | PC+ABS | 72 |
| A0101.036.0004 | SDRHF030030 | 30 | 30 | PC+ABS | 60 |
| A0101.036.0005 | SDRHF025375 | 25 | 37.5 | PC+ABS | 60 |
| A0101.036.0006 | SDRHF375375 | 37.5 | 37.5 | PC+ABS | 50 |
| A0101.036.0007 | SDRHF050375 | 50 | 37.5 | PC+ABS | 50 |
| A0101.036.0008 | SDRHF025040 | 25 | 40 | PC+ABS | 60 |
| A0101.036.0009 | SDRHF040040 | 40 | 40 | PC+ABS | 50 |
| A0101.036.0010 | SDRHF060040 | 60 | 40 | PC+ABS | 40 |
| A0101.036.0011 | SDRHF080040 | 80 | 40 | PC+ABS | 32 |
| A0101.036.0012 | SDRHF100040 | 100 | 40 | PC+ABS | 28 |
| A0101.036.0013 | SDRHF025050 | 25 | 50 | PC+ABS | 50 |
| A0101.036.0014 | SDRHF375050 | 37.5 | 50 | PC+ABS | 50 |
| A0101.036.0015 | SDRHF050050 | 50 | 50 | PC+ABS | 40 |
| A0101.036.0016 | SDRHF075050 | 75 | 50 | PC+ABS | 26 |
| A0101.036.0017 | SDRHF100050 | 100 | 50 | PC+ABS | 20 |
| A0101.036.0018 | SDRHF125050 | 125 | 50 | PC+ABS | 16 |
| A0101.036.0019 | SDRHF025060 | 25 | 60 | PC+ABS | 42 |
| A0101.036.0020 | SDRHF030060 | 30 | 60 | PC+ABS | 36 |
| A0101.036.0021 | SDRHF040060 | 40 | 60 | PC+ABS | 40 |
| A0101.036.0022 | SDRHF060060 | 60 | 60 | PC+ABS | 30 |
| A0101.036.0023 | SDRHF080060 | 80 | 60 | PC+ABS | 22 |
| A0101.036.0024 | SDRHF100060 | 100 | 60 | PC+ABS | 18 |
| A0101.036.0025 | SDRHF120060 | 120 | 60 | PC+ABS | 16 |
| A0101.036.0026 | SDRHF045065 | 45 | 65 | PC+ABS | 42 |
| A0101.036.0027 | SDRHF025075 | 25 | 75 | PC+ABS | 50 |
| A0101.036.0028 | SDRHF375075 | 37.5 | 75 | PC+ABS | 28 |
| A0101.036.0029 | SDRHF050075 | 50 | 75 | PC+ABS | 24 |
| A0101.036.0030 | SDRHF075075 | 75 | 75 | PC+ABS | 16 |
| A0101.036.0031 | SDRHF100075 | 100 | 75 | PC+ABS | 12 |
| A0101.036.0032 | SDRHF125075 | 125 | 75 | PC+ABS | 10 |
| A0101.036.0033 | SDRHF025080 | 25 | 80 | PC+ABS | 50 |
| A0101.036.0034 | SDRHF035080 | 35 | 80 | PC+ABS | 36 |
| A0101.036.0035 | SDRHF040080 | 40 | 80 | PC+ABS | 32 |
| A0101.036.0036 | SDRHF060080 | 60 | 80 | PC+ABS | 20 |
| A0101.036.0037 | SDRHF080080 | 80 | 80 | PC+ABS | 16 |
| A0101.036.0038 | SDRHF100080 | 100 | 80 | PC+ABS | 12 |
| A0101.036.0039 | SDRHF120080 | 120 | 80 | PC+ABS | 10 |
| A0101.036.0040 | SDRHF033100 | 33 | 100 | PC+ABS | 36 |
| A0101.036.0041 | SDRHF040100 | 40 | 100 | PC+ABS | 28 |
| A0101.036.0042 | SDRHF050100 | 50 | 100 | PC+ABS | 24 |
| A0101.036.0043 | SDRHF060100 | 60 | 100 | PC+ABS | 20 |
| A0101.036.0044 | SDRHF075100 | 75 | 100 | PC+ABS | 16 |
| A0101.036.0045 | SDRHF080100 | 80 | 100 | PC+ABS | 16 |
| A0101.036.0046 | SDRHF100100 | 100 | 100 | PC+ABS | 12 |
