SDR Solid Wiring Ducts

solid wall wire duct
SDR Solid Wiring Ducts

Material: Polyvinylchloride (PVC)

Material: Self-extinguishing rigid PVC Class 1 (UL94-V0)

Cover: Non-slip cover with excessive flush cover design with

Smooth fingers: Will not hurt the installer or damage wires or cables

Colours: Grey (White, Blue and Black available on request)

Compliance: RoHS; REACH

UL
CE
EAC
UKCA
  • DOWNLOADS
  • VIDEOS
  • ENQUIRE
Enquire for this product
13901848686

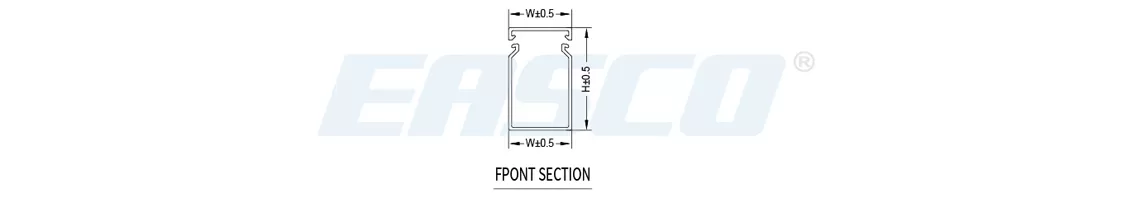

Technical Drawing of SDR Solid Wiring Ducts


Technical Drawing of SDR Solid Wiring Ducts

Specifications of SDR Solid Wiring Ducts


Article No.Part No.Wd. (W)Ht. (H)MaterialPkg Qty (pcs)
A0101.008.0078SDR15201520PVC150
A0101.008.0001SDR20202020PVC116
A0101.008.0002SDR15251525PVC150
A0101.008.0003SDR20252025PVC116
A0101.008.0004SDR25252525PVC90
A0101.008.0005SDR30253025PVC60
A0101.008.0006SDR40254025PVC60
A0101.008.0007SDR50255025PVC50
A0101.008.0008SDR20302030PVC96
A0101.008.0009SDR25302530PVC72
A0101.008.0010SDR30303030PVC60
A0101.008.0011SDR35303530PVC56
A0101.008.0012SDR40304030PVC50
A0101.008.0013SDR33333333PVC56
A0101.008.0014SDR25352535PVC72
A0101.008.0015SDR35353535PVC50
A0101.008.0016SDR50355035PVC50
A0101.008.0017SDR25402540PVC60
A0101.008.0079SDR30403040PVC50
A0101.008.0080SDR35403540PVC50
A0101.008.0018SDR40404040PVC50
A0101.008.0019SDR60406040PVC40
A0101.008.0020SDR80408040PVC32
A0101.008.0021SDR25452545PVC54
A0101.008.0022SDR33453345PVC42
A0101.008.0023SDR45454545PVC46
A0101.008.0024SDR65456545PVC36
A0101.008.0025SDR25502550PVC50
A0101.008.0026SDR30503050PVC60
A0101.008.0027SDR35503550PVC54
A0101.008.0028SDR40504050PVC50
A0101.008.0029SDR45504550PVC40
A0101.008.0030SDR50505050PVC40
A0101.008.0031SDR55505550PVC40
A0101.008.0032SDR60506050PVC34
A0101.008.0033SDR80508050PVC26
A0101.008.0034SDR1005010050PVC20
A0101.008.0035SDR25602560PVC42
A0101.008.0036SDR30603060PVC60
A0101.008.0037SDR35603560PVC50
A0101.008.0038SDR40604060PVC42
A0101.008.0039SDR45604560PVC42
A0101.008.0040SDR50605060PVC36
A0101.008.0041SDR55605560PVC36
A0101.008.0042SDR60606060PVC30
A0101.008.0043SDR80608060PVC22
A0101.008.0044SDR1006010060PVC18
A0101.008.0045SDR72647264PVC24
A0101.008.0046SDR25652565PVC40
A0101.008.0047SDR33653365PVC28
A0101.008.0048SDR45654565PVC42
A0101.008.0049SDR65656565PVC30
A0101.008.0050SDR25752575PVC50
A0101.008.0051SDR50755075PVC24
A0101.008.0052SDR75757575PVC16
A0101.008.0053SDR1007510075PVC12
A0101.008.0054SDR25802580PVC32
A0101.008.0055SDR30803080PVC40
A0101.008.0056SDR35803580PVC36
A0101.008.0057SDR40804080PVC32
A0101.008.0058SDR45804580PVC28
A0101.008.0059SDR50805080PVC24
A0101.008.0060SDR55805580PVC24
A0101.008.0061SDR60806080PVC20
A0101.008.0062SDR80808080PVC16
A0101.008.0063SDR1008010080PVC12
A0101.008.0064SDR1208012080PVC10
A0101.008.0065SDR1408014080PVC8
A0101.008.0066SDR2510025100PVC50
A0101.008.0067SDR3310033100PVC36
A0101.008.0068SDR4010040100PVC28
A0101.008.0069SDR4810048100PVC24
A0101.008.0070SDR5010050100PVC24
A0101.008.0071SDR6010060100PVC20
A0101.008.0072SDR7010070100PVC16
A0101.008.0073SDR7510075100PVC16
A0101.008.0074SDR8010080100PVC16
A0101.008.0075SDR100100100100PVC12
A0101.008.0076SDR120100120100PVC8
A0101.008.0081SDR150100150100PVC8
A0101.008.0077SDR160100160100PVC8
