PG/PGL Cable Glands

cable gland company
PG/PGL Cable Glands

Material: Nylon PA66 + EPDM Rubber

Thread: PG

Working Temperature: -40℃ ~ +105℃. short time +160℃

Waterproof: IP68

Color: White, Black, Other colors upon request

Fire Resistant: UL94-2

Specification Met: CE RoHS


CE
ROHS
  • DOWNLOADS
  • VIDEOS
  • ENQUIRE
Enquire for this product
13901848686

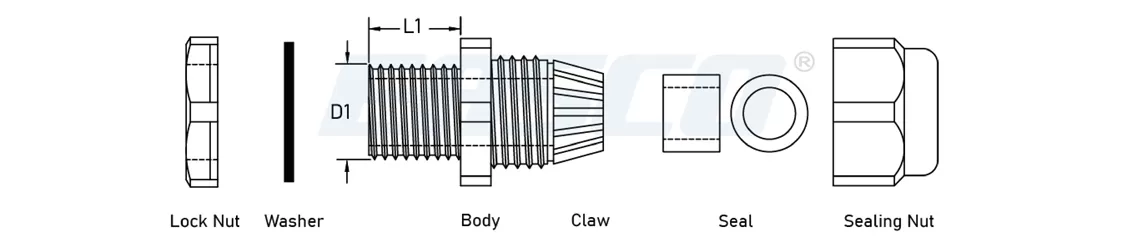

Technical Drawing of PG/PGL Cable Glands


Technical Drawing of PG/PGL Cable Glands

Specifications of PG/PGL Cable Glands


Article No.Part No.Cable Min RangeCable Max RangeThread O.D.(D1)Thread Length(L1)Spanner Size(mm)Installing Hole (mm)
A0107.002.0001PG7-6.536.512.5819/1512.5~12.8
A0107.002.0002PG7-5.535.512.5919/1912.5~12.8
A0107.002.0003PG7-84812.5919/1912.5~12.8
A0107.002.0004PG9-84815.2922/1915.2~15.5
A0107.002.0005PG9-5.535.515.2922/1915.2~15.5
A0107.002.0006PG11-1061018.6924/2218.6~18.9
A0107.002.0007PG11-74718.6924/2218.6~18.9
A0107.002.0008PG13.5-1271220.4927/2420.4~20.7
A0107.002.0009PG13.5-95920.4927/2420.4~20.7
A0107.002.0010PG16-148.51422.51030/2722.5~22.8
A0107.002.0011PG16-1171122.51030/2722.5~22.8
A0107.002.0012PG21-18121828.31035/3328.3~28.7
A0107.002.0013PG21-16111628.31035/3328.3~28.7
A0107.002.0014PG29-251825371246/4237~37.4
A0107.002.0015PG29-221622371246/4237~37.4
A0107.002.0016PG36-312431471556/5247~47.4
A0107.002.0017PG36-262126471556/5247~47.4
A0107.002.0018PG42-403140542065/6254~54.4
A0107.002.0019PG42-322632542065/6254~54.4
A0107.002.0020PG48-44324459.32069/6559.3~59.7
A0107.002.0021PG48-38303859.32069/6559.3~59.7
