Material: Galvanized steel.
Zinc plating color: Blue white or Yellow , optional.
Size: 35x7.5mm
Features:
The guide rail makes the installation of electrical equipment significantly faster and easier than installing individual components on the cabinet body.
The guide rail helps save space in electrical panels and junction boxes by reducing the number of required installation hardware.
The guide rail provides a universal standard that most circuit breakers, PLCs, and wiring terminals are designed to meet.
The rails allow for easy installation and uninstallation of components. It is also much easier to make minor adjustments to the position of the guide rail installation components.
Guides help simplify wiring design by providing centralized locations through which wiring and connectors can pass.

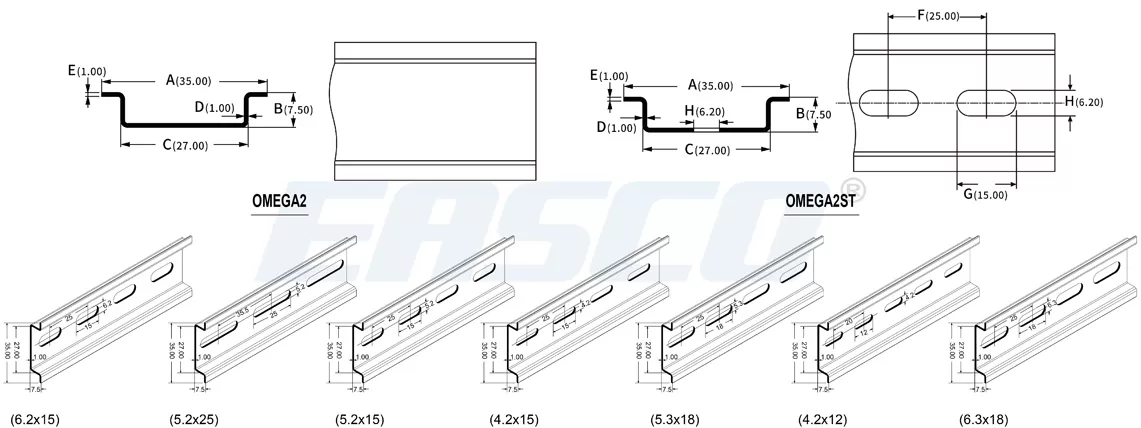

| Article No. | Part No. | Material | A | B | C | D | E | F | G | H | Pkg Qty (pcs) |
| A0103.001.0001 | OMEGA2(Unperforated Zinc-Plated Steel ) | Steel | 35 | 7.5 | 27 | 1 | 1 | - | - | - | 50 |
| A0103.001.0002 | OMEGA2ST-6.2x15(Perforated Zinc-Plated Steel ) | Steel | 35 | 7.5 | 27 | 1 | 1 | 25 | 15 | 6.2 | 50 |
| A0103.001.0003 | OMEGA2ST-5.2x25(Perforated Zinc-Plated Steel ) | Steel | 35 | 7.5 | 27 | 1 | 1 | 35.5 | 25 | 5.2 | 50 |
| A0103.001.0004 | OMEGA2ST-5.2x15(Perforated Zinc-Plated Steel ) | Steel | 35 | 7.5 | 27 | 1 | 1 | 25 | 15 | 5.2 | 50 |
| A0103.001.0005 | OMEGA2ST-4.2x15 (Perforated Zinc-Plated Steel ) | Steel | 35 | 7.5 | 27 | 1 | 1 | 25 | 15 | 4.2 | 50 |
| A0103.001.0006 | OMEGA2ST-5.3x18 (Perforated Zinc-Plated Steel ) | Steel | 35 | 7.5 | 27 | 1 | 1 | 25 | 18 | 5.3 | 50 |
| A0103.001.0007 | OMEGA2ST-4.2x12 (Perforated Zinc-Plated Steel ) | Steel | 35 | 7.5 | 27 | 1 | 1 | 20 | 12 | 4.2 | 50 |
| A0103.001.0008 | OMEGA2ST-6.3x18 (Perforated Zinc-Plated Steel ) | Steel | 35 | 7.5 | 27 | 1 | 1 | 25 | 18 | 6.3 | 50 |
| A0103.001.0009 | OMEGA2(Non-porous colored zinc ) | Steel | 35 | 7.5 | 27 | 1 | 1 | - | - | - | 50 |
| A0103.001.0010 | OMEGA2ST-6.2x15(Perforated colored zinc) | steel | 35 | 7.5 | 27 | 1 | 1 | 25 | 15 | 6.2 | 50 |
| A0103.001.0011 | OMEGA2ST-5.2x25(Perforated colored zinc) | steel | 35 | 7.5 | 27 | 1 | 1 | 35.5 | 25 | 5.2 | 50 |
| A0103.001.0012 | OMEGA2ST-5.2x15(Perforated colored zinc) | steel | 35 | 7.5 | 27 | 1 | 1 | 25 | 15 | 5.2 | 50 |
| A0103.001.0013 | OMEGA2ST-4.2x15(Perforated colored zinc) | Steel | 35 | 7.5 | 27 | 1 | 1 | 25 | 15 | 4.2 | 50 |
| A0103.001.0014 | OMEGA2ST-5.3x18(Perforated colored zinc) | Steel | 35 | 7.5 | 27 | 1 | 1 | 25 | 18 | 5.3 | 50 |
| A0103.001.0015 | OMEGA2ST-4.2x12(Perforated colored zinc) | steel | 35 | 7.5 | 27 | 1 | 1 | 20 | 12 | 4.2 | 50 |
| A0103.001.0016 | OMEGA2ST-6.3x18(Perforated colored zinc) | steel | 35 | 7.5 | 27 | 1 | 1 | 25 | 18 | 6.3 | 50 |
| A0103.001.0017 | OMEGA2(Non-porous 316 Stainless Steel) | Stainless Steel | 35 | 7.5 | 27 | 1 | 1 | - | - | - | 50 |
| A0103.001.0018 | OMEGA2ST(316 Stainless Steel Perforated) | Stainless Steel | 35 | 7.5 | 27 | 1 | 1 | 25 | 15 | 6.2 | 50 |
