Material: Nylon PA66 + EPDM Rubber
Thread: NPT
Working Temperature: -40℃ ~ +105℃. short time +160℃
Waterproof: IP68
Color: White, Black, Other colors upon request.
Fire Resistant: UL94-2
Specification Met: CE RoHS

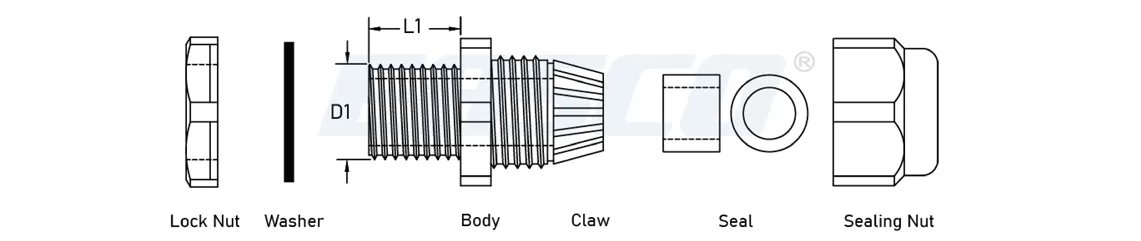

Article No. | Part No. | Cable Min Range | Cable Max Range | Thread O.D.(D1) | Thread Length(L1) | Spanner Size(mm) |
A0107.005.0001 | NPT1/4"-8 | 4 | 8 | 13.1 | 9 | 19 |
A0107.005.0002 | NPT1/4"-5.5 | 3 | 5.5 | 13.1 | 9 | 19 |
A0107.005.0003 | NPT3/8"-10 | 6 | 10 | 16.6 | 10 | 22 |
A0107.005.0004 | NPT3/8"-7 | 4 | 7 | 16.6 | 10 | 22 |
A0107.005.0005 | NPT1/2"-12 | 6 | 12 | 20.9 | 10 | 27 |
A0107.005.0006 | NPT1/2"-9 | 5 | 9 | 20.9 | 10 | 27 |
A0107.005.0007 | NPT3/4"-18 | 12.5 | 18 | 26.4 | 15 | 33 |
A0107.005.0008 | NPT3/4"-13 | 7 | 13 | 26.4 | 15 | 33 |
A0107.005.0009 | NPT1"-25 | 18 | 25 | 33.5 | 17 | 41 |
A0107.005.0010 | NPT1"-12 | 8 | 12 | 33.5 | 17 | 41 |
A0107.005.0011 | NPT1-1/4"-32 | 24 | 32 | 42 | 17 | 50 |
A0107.005.0012 | NPT1-1/4"-25 | 18 | 25 | 42 | 17 | 50 |
