Multi-Hole Cable Glands

Thread: Metric, PG, G(PF), and NPT thread.

Materials: UL approved Mylon PA66(Flammability UL94V-2)for A. C .F parts ;(Accept to make flammability UL V-0); EPDM rubber for B.D parts; (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali, etc).

Protection degree: lP68-10 Bar

Working temperature: -40℃ to 100℃ in static state ,or instaneous heat resistance up to 120℃ ; -20℃ to 80℃ in dynamic state,or instantaneous heat resistance up to 100℃

Features: The claws and seals of excellent design, sealing nut hace a "click" sound and re-open, can hold cable firmly and have a wider cable range.Resistant to salt water, weak acid, alcohol. oil, grease and common solvency.

Colours: Black (PAL9005), gray (PAL7035), other color available upon request.

Note: Special size and type, please contact us

CE
ROHS
  • DOWNLOADS
  • VIDEOS
  • ENQUIRE
Enquire for this product
13901848686

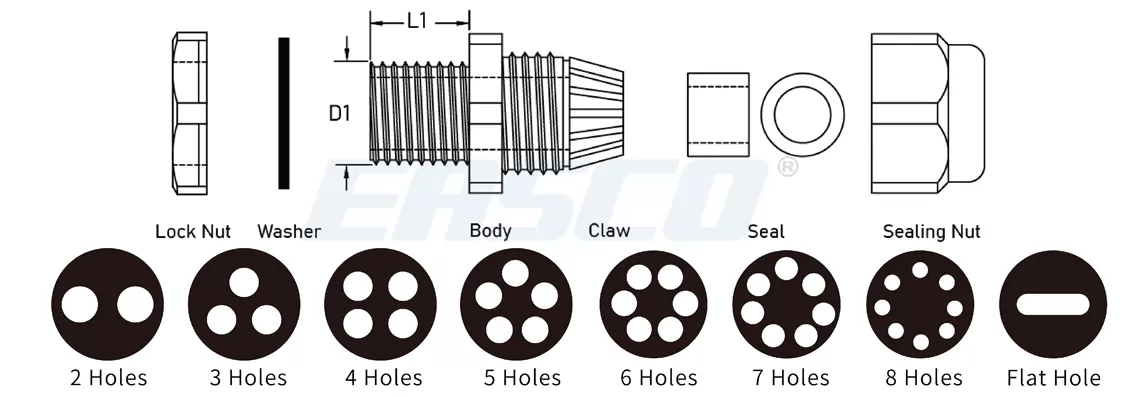

Technical Drawing of Multi-Hole Cable Glands


Technical Drawing of Multi-Hole Cable Glands

Specifications of Multi-Hole Cable Glands


Article No.Part No.SpecCable RangeThread O.D.(D1)Thread Length(L1)Spanner Size(mmPkg Qty
A0107.009.0001M12-32 Holes3-1.212918/1950
A0107.009.0009M16-43 Holes4-1.6161522/2250
A0107.009.0017M20-3.54 Holes3.5-1.5201527/2750
A0107.009.0040M20-6Flat Hole6-14201527/2750
A0107.009.0019M25-54 Holes5-2251533/3350
A0107.009.0006M25-8.72 Holes8.7-4.5251533/3350
A0107.009.0014M32-103 Holes10-5321541/4120
A0107.009.0008M12-2.63 Holes2.6-1.212918/1950
A0107.009.0011M20-53 Holes5-2201527/2750
A0107.009.0013M25-83 Holes8-4251533/3350
A0107.009.0015M12-2.34 Holes2.3-112918/1950
A0107.009.0016M16-34 Holes3-1.2161522/2250
A0107.009.0018M20-4.54 Holes4.5-2201527/2750
A0107.009.0044M25-7Flat Hole7-14251533/3350
A0107.009.0021M32-94 Holes9-4.5321541/4120
A0107.009.0028M16-2.56 Holes2-1161522/2250
A0107.009.0033M20-37 Holes3-1.2201527/2750
A0107.009.0024M20-4.25 Holes4.2-1.7201527/2750
A0107.009.0037M25-3.58 Holes3.5-1.5251533/3350
A0107.009.0043M25-6Flat Hole6-14251533/3350
A0107.009.0045M32-8Flat Hole8-22321541/4120
A0107.009.0031M25-5.36 Holes5.3-2.4251533/3350
A0107.009.0032M32-76 Holes7-3.5321541/4150
A0107.009.0035M32-67 Holes6-3321541/4150
A0107.009.0036M20-2.88 Holes2.8-1201527/2750
A0107.009.0038M16-10Flat Hole6-10161522/2250
A0107.009.0039M20-6.5Flat Hole6.5-12201527/2750
A0107.009.0041M20-12Flat Hole7-12201527/2750
A0107.009.0042M20-14Flat Hole7-14201527/2750
A0107.009.0046M40-10Flat Hole10-28.5402050/5010
A0107.009.0047M40-5.5Flat Hole5.5-29402050/5010
