GTN Double Loop Mounting Tie

cable ties manufacturers
GTN Double Loop Mounting Tie

Material: UL approved Nylon 6 polyamide, UL94HB

Working Temperature: -40℃ ~ +85℃


Features:

  • Double way insertion head design to bundle the wires from either direction.

  • Double head design to secure wires, tubes parallelly separated.


Remark: Standard color is black.Special color, size, length upon request of reasonable quantity.


CE
ROHS
  • DOWNLOADS
  • VIDEOS
  • ENQUIRE
Enquire for this product
13901848686

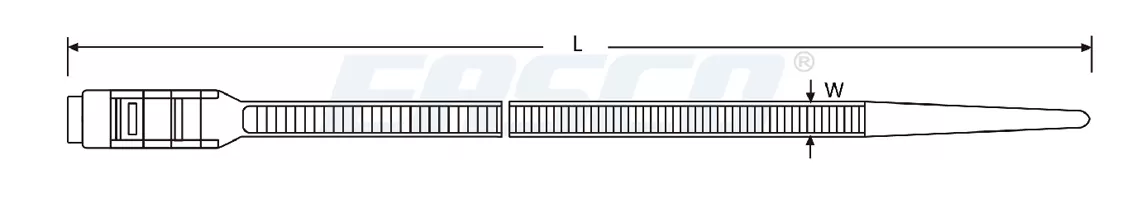

Technical Drawing of GTN Double Loop Mounting Tie


Technical Drawing of GTN Double Loop Mounting Tie

Specifications of GTN Double Loop Mounting Tie


Article No.Part No.Length LWidth WMaterialPkg Qty
A0102.003.001GTN-180HDB1808.6PA6100
A0102.003.002GTN-260HDB2608.6PA6100
A0102.003.003GTN-360HDB3558.6PA6100


Contact us today for your cable termination products, cable accessories or tooling requirements.
