Material: Polyvinylchloride (PVC)
Self-extinguishing rigid PVC Class 1 (UL94-V0)
Temperature: +5°F to +140°F (-15°C to +60°C)
Cover: Non-slip cover with excessive flush cover design with
Smooth fingers: Will not hurt the installer or damage wires or cables
Colours: Grey (White, Blue and Black available on request)
Compliance: RoHS; REACH
Specifications: CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL

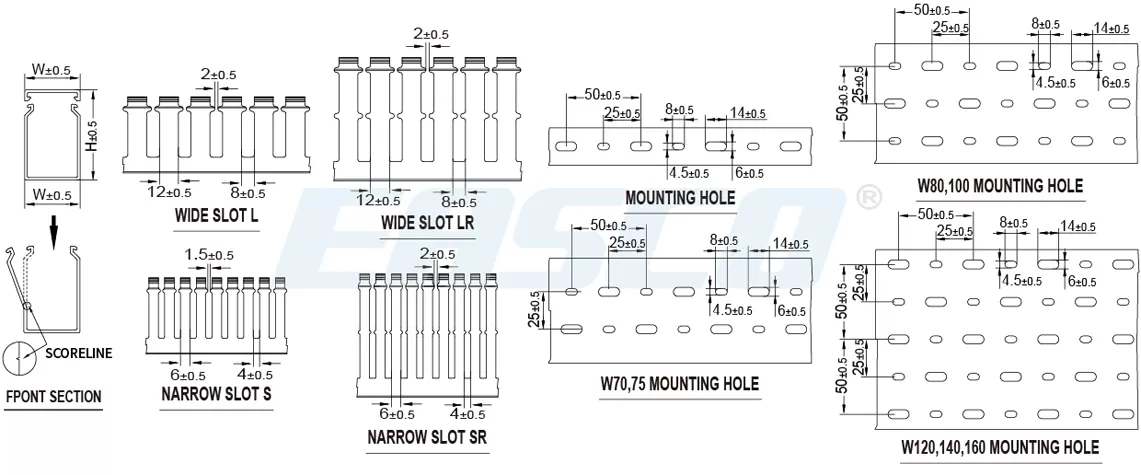

Standard mounting base slots to DIN 43659
| Article No. | Part No. | Wd. (W) | Ht. (H) | Wide (L) | Narrow (S) | Material | Pkg Qty (pcs) |
| A0101.007.0001 | GARZ2525 | 25 | 25 | L | S | PVC | 90 |
| A0101.007.0002 | GARZ3025 | 30 | 25 | L | S | PVC | 60 |
| A0101.007.0003 | GARZ4025 | 40 | 25 | L | S | PVC | 60 |
| A0101.007.0004 | GARZ5025 | 50 | 25 | L | S | PVC | 50 |
| A0101.007.0005 | GARZ2030 | 20 | 30 | L | S | PVC | 96 |
| A0101.007.0006 | GARZ2530 | 25 | 30 | L | S | PVC | 72 |
| A0101.007.0007 | GARZ3030 | 30 | 30 | L | S | PVC | 60 |
| A0101.007.0008 | GARZ3530 | 35 | 30 | L | S | PVC | 56 |
| A0101.007.0009 | GARZ4030 | 40 | 30 | L | S | PVC | 50 |
| A0101.007.0010 | GARZ3333 | 33 | 33 | L | S | PVC | 56 |
| A0101.007.0011 | GARZ2535 | 25 | 35 | L | S | PVC | 72 |
| A0101.007.0012 | GARZ3535 | 35 | 35 | L | S | PVC | 50 |
| A0101.007.0013 | GARZ5035 | 50 | 35 | L | S | PVC | 50 |
| A0101.007.0014 | GARZ2540 | 25 | 40 | L | S | PVC | 60 |
| A0101.007.0015 | GARZ4040 | 40 | 40 | L | S | PVC | 50 |
| A0101.007.0016 | GARZ6040 | 60 | 40 | L | S | PVC | 40 |
| A0101.007.0017 | GARZ8040 | 80 | 40 | L | S | PVC | 32 |
| A0101.007.0018 | GARZ2545 | 25 | 45 | L | S | PVC | 54 |
| A0101.007.0019 | GARZ3345 | 33 | 45 | L | S | PVC | 42 |
| A0101.007.0020 | GARZ4545 | 45 | 45 | L | S | PVC | 46 |
| A0101.007.0021 | GARZ6545 | 65 | 45 | L | S | PVC | 36 |
| A0101.007.0022 | GARZ2550 | 25 | 50 | L | S | PVC | 50 |
| A0101.007.0023 | GARZ3050 | 30 | 50 | L | S | PVC | 60 |
| A0101.007.0024 | GARZ3550 | 35 | 50 | L | S | PVC | 54 |
| A0101.007.0025 | GARZ4050 | 40 | 50 | L | S | PVC | 50 |
| A0101.007.0026 | GARZ4550 | 45 | 50 | L | S | PVC | 40 |
| A0101.007.0027 | GARZ5050 | 50 | 50 | L | S | PVC | 40 |
| A0101.007.0028 | GARZ5550 | 55 | 50 | L | S | PVC | 40 |
| A0101.007.0029 | GARZ6050 | 60 | 50 | L | S | PVC | 34 |
| A0101.007.0030 | GARZ8050 | 80 | 50 | L | S | PVC | 26 |
| A0101.007.0031 | GARZ10050 | 100 | 50 | L | S | PVC | 20 |
| A0101.007.0032 | GARZ2560 | 25 | 60 | L | S | PVC | 66 |
| A0101.007.0033 | GARZ3060 | 30 | 60 | L | S | PVC | 60 |
| A0101.007.0034 | GARZ3560 | 35 | 60 | L | S | PVC | 50 |
| A0101.007.0035 | GARZ4060 | 40 | 60 | L | S | PVC | 42 |
| A0101.007.0036 | GARZ4560 | 45 | 60 | L | S | PVC | 42 |
| A0101.007.0037 | GARZ5060 | 50 | 60 | L | S | PVC | 36 |
| A0101.007.0038 | GARZ5560 | 55 | 60 | L | S | PVC | 36 |
| A0101.007.0039 | GARZ6060 | 60 | 60 | L | S | PVC | 30 |
| A0101.007.0040 | GARZ8060 | 80 | 60 | L | S | PVC | 22 |
| A0101.007.0041 | GARZ10060 | 100 | 60 | L | S | PVC | 18 |
| A0101.007.0042 | GARZ7264 | 72 | 64 | L | S | PVC | 24 |
| A0101.007.0043 | GARZ2565 | 25 | 65 | L | S | PVC | 60 |
| A0101.007.0044 | GARZ3365 | 33 | 65 | L | S | PVC | 54 |
| A0101.007.0045 | GARZ4565 | 45 | 65 | L | S | PVC | 42 |
| A0101.007.0046 | GARZ6565 | 65 | 65 | L | S | PVC | 30 |
| A0101.007.0047 | GARZ2575 | 25 | 75 | L | S | PVC | 50 |
| A0101.007.0048 | GARZ5075 | 50 | 75 | L | S | PVC | 24 |
| A0101.007.0049 | GARZ7575 | 75 | 75 | L | S | PVC | 16 |
| A0101.007.0050 | GARZ10075 | 100 | 75 | L | S | PVC | 12 |
| A0101.007.0051 | GARZ2580 | 25 | 80 | LR | SR | PVC | 50 |
| A0101.007.0052 | GARZ3080 | 30 | 80 | LR | SR | PVC | 40 |
| A0101.007.0053 | GARZ3580 | 35 | 80 | LR | SR | PVC | 36 |
| A0101.007.0054 | GARZ4080 | 40 | 80 | LR | SR | PVC | 32 |
| A0101.007.0055 | GARZ4580 | 45 | 80 | LR | SR | PVC | 28 |
| A0101.007.0056 | GARZ5080 | 50 | 80 | LR | SR | PVC | 24 |
| A0101.007.0057 | GARZ5580 | 55 | 80 | LR | SR | PVC | 24 |
| A0101.007.0058 | GARZ6080 | 60 | 80 | LR | SR | PVC | 20 |
| A0101.007.0059 | GARZ8080 | 80 | 80 | LR | SR | PVC | 16 |
| A0101.007.0060 | GARZ10080 | 100 | 80 | LR | SR | PVC | 12 |
| A0101.007.0061 | GARZ12080 | 120 | 80 | LR | SR | PVC | 10 |
| A0101.007.0062 | GARZ14080 | 140 | 80 | LR | SR | PVC | 8 |
| A0101.007.0063 | GARZ25100 | 25 | 100 | LR | SR | PVC | 50 |
| A0101.007.0064 | GARZ33100 | 33 | 100 | LR | SR | PVC | 36 |
| A0101.007.0065 | GARZ40100 | 40 | 100 | LR | SR | PVC | 28 |
| A0101.007.0066 | GARZ48100 | 48 | 100 | LR | SR | PVC | 24 |
| A0101.007.0067 | GARZ50100 | 50 | 100 | LR | SR | PVC | 24 |
| A0101.007.0068 | GARZ60100 | 60 | 100 | LR | SR | PVC | 20 |
| A0101.007.0069 | GARZ70100 | 70 | 100 | LR | SR | PVC | 16 |
| A0101.007.0070 | GARZ75100 | 75 | 100 | LR | SR | PVC | 16 |
| A0101.007.0071 | GARZ80100 | 80 | 100 | LR | SR | PVC | 16 |
| A0101.007.0072 | GARZ100100 | 100 | 100 | LR | SR | PVC | 12 |
| A0101.007.0073 | GARZ120100 | 120 | 100 | LR | SR | PVC | 8 |
| A0101.007.0074 | GARZ160100 | 160 | 100 | LR | SR | PVC | 8 |
