GAR Open Slot Wiring Ducts

open slot cable raceway
GAR Open Slot Wiring Ducts

Material: Polyvinylchloride (PVC)

Self-extinguishing rigid PVC Class 1 (UL94-V0)

Temperature: +5°F to +140°F (-15°C to +60°C)

Cover: Non-slip cover with excessive flush cover design with

Smooth fingers: Will not hurt the installer or damage wires or cables

Colours: Grey (White, Blue and Black available on request)

Compliance: RoHS;REACH

Specifications: CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL

Standard mounting base slots to DIN 43659


UL
CE
EAC
UKCA
  • DOWNLOADS
  • VIDEOS
  • ENQUIRE
Enquire for this product
13901848686

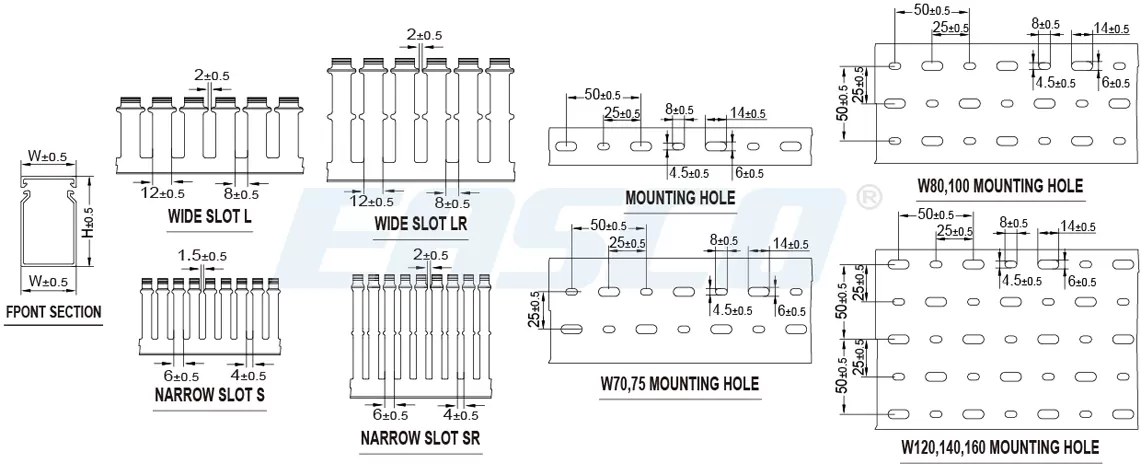

Technical Drawing of GAR Open Slot Wiring Ducts


Technical Drawing of GAR Open Slot Wiring Ducts


Specifications of GAR Open Slot Wiring Ducts


Article No.Part No.Wd. (W)Ht. (H)Wide (L)Narrow (S)MaterialPkg Qty (pcs)
A0101.001.0078GAR15201520-SPVC150
A0101.001.0001GAR20202020LSPVC116
A0101.001.0002GAR15251525LSPVC150
A0101.001.0003GAR20252025LSPVC116
A0101.001.0004GAR25252525LSPVC90
A0101.001.0005GAR30253025LSPVC60
A0101.001.0006GAR40254025LSPVC60
A0101.001.0007GAR50255025LSPVC50
A0101.001.0008GAR20302030LSPVC96
A0101.001.0009GAR25302530LSPVC72
A0101.001.0010GAR30303030LSPVC60
A0101.001.0011GAR35303530LSPVC56
A0101.001.0012GAR40304030LSPVC50
A0101.001.0013GAR33333333LSPVC56
A0101.001.0014GAR25352535LSPVC72
A0101.001.0015GAR35353535LSPVC50
A0101.001.0016GAR50355035LSPVC50
A0101.001.0017GAR25402540LSPVC60
A0101.001.0079GAR30403040LSPVC50
A0101.001.0080GAR35403540LSPVC50
A0101.001.0018GAR40404040LSPVC50
A0101.001.0019GAR60406040LSPVC40
A0101.001.0020GAR80408040LSPVC32
A0101.001.0021GAR25452545LSPVC54
A0101.001.0022GAR33453345LSPVC42
A0101.001.0023GAR45454545LSPVC46
A0101.001.0024GAR65456545LSPVC36
A0101.001.0025GAR25502550LSPVC50
A0101.001.0026GAR30503050LSPVC60
A0101.001.0027GAR35503550LSPVC54
A0101.001.0028GAR40504050LSPVC50
A0101.001.0029GAR45504550LSPVC40
A0101.001.0030GAR50505050LSPVC40
A0101.001.0031GAR55505550LSPVC40
A0101.001.0032GAR60506050LSPVC34
A0101.001.0033GAR80508050LSPVC26
A0101.001.0034GAR1005010050LSPVC20
A0101.001.0035GAR25602560LSPVC42
A0101.001.0036GAR30603060LSPVC60
A0101.001.0037GAR35603560LSPVC50
A0101.001.0038GAR40604060LSPVC42
A0101.001.0039GAR45604560LSPVC42
A0101.001.0040GAR50605060LSPVC36
A0101.001.0041GAR55605560LSPVC36
A0101.001.0042GAR60606060LSPVC30
A0101.001.0043GAR80608060LSPVC22
A0101.001.0044GAR1006010060LSPVC18
A0101.001.0045GAR72647264LSPVC24
A0101.001.0046GAR25652565LSPVC40
A0101.001.0047GAR33653365LSPVC28
A0101.001.0048GAR45654565LSPVC42
A0101.001.0049GAR65656565LSPVC30
A0101.001.0050GAR25752575LSPVC50
A0101.001.0051GAR50755075LSPVC24
A0101.001.0052GAR75757575LSPVC16
A0101.001.0053GAR1007510075LSPVC12
A0101.001.0054GAR25802580LRSRPVC32
A0101.001.0055GAR30803080LRSRPVC40
A0101.001.0056GAR35803580LRSRPVC36
A0101.001.0057GAR40804080LRSRPVC32
A0101.001.0058GAR45804580LRSRPVC28
A0101.001.0059GAR50805080LRSRPVC24
A0101.001.0060GAR55805580LRSRPVC24
A0101.001.0061GAR60806080LRSRPVC20
A0101.001.0062GAR80808080LRSRPVC16
A0101.001.0063GAR1008010080LRSRPVC12
A0101.001.0064GAR1208012080LRSRPVC10
A0101.001.0065GAR1408014080LRSRPVC8
A0101.001.0066GAR2510025100LRSRPVC50
A0101.001.0067GAR3310033100LRSRPVC36
A0101.001.0068GAR4010040100LRSRPVC28
A0101.001.0069GAR4810048100LRSRPVC24
A0101.001.0070GAR5010050100LRSRPVC24
A0101.001.0071GAR6010060100LRSRPVC20
A0101.001.0072GAR7010070100LRSRPVC16
A0101.001.0073GAR7510075100LRSRPVC16
A0101.001.0074GAR8010080100LRSRPVC16
A0101.001.0075GAR100100100100LRSRPVC12
A0101.001.0076GAR120100120100LRSRPVC8
A0101.001.0081GAR150100150100LRSRPVC8
A0101.001.0077GAR160100160100LRSRPVC8
