G Cable Glands

Material: Nylon PA66 + EPDM Rubber

Thread: G

Working Temperature: -40℃ ~ +105℃. short time +160℃

Waterproof: IP68

Color: White, Black, Other colors upon request.

Fire Resistant: UL94-V2

Specification Met: CE RoHS

CE
ROHS
  • DOWNLOADS
  • VIDEOS
  • ENQUIRE
Enquire for this product
13901848686

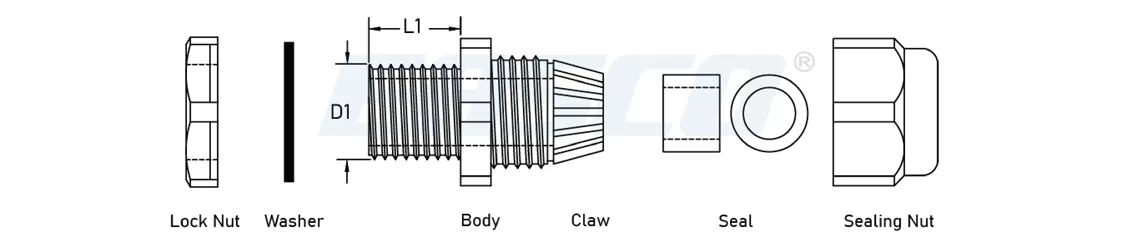

Technical Drawing of G Cable Glands


Technical Drawing of G Cable Glands

Specifications of G Cable Glands


Article No.Part No.Cable Min RangeCable Max RangeThread O.D.(D1)Thread Length(L1)Spanner Size(mm)Installing Hole (mm)
A0107.004.0001G1/4"-84813.291913.2~13.4
A0107.004.0002G1/4"-5.535.513.291913.2~13.4
A0107.004.0003G3/8"-1061016.71022/2216.7~16.9
A0107.004.0004G3/8"-74716.71022/2216.7~16.9
A0107.004.0005G1/2"-1261220.91027/2421~21.2
A0107.004.0006G1/2"-95920.91027/2421~21.2
A0107.004.0007G3/4"-1812.51826.41233/3326.5~26.8
A0107.004.0008G3/4"-1371326.41233/3326.5~26.8
A0107.004.0009G1"-25182533.213.542/4133.3~33.6
A0107.004.0010G1"-1281233.213.542/4133.3~33.6
A0107.004.0011G1-1/4"-32243241.91551/5042~42.3
A0107.004.0012G1-1/4"-25182541.91651/5042~42.3
