FD Flexible Duct

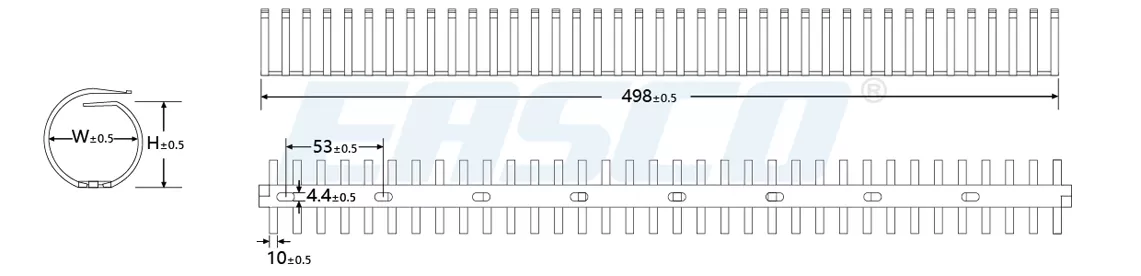

Technical Drawing of FD Flexible Duct



Technical Drawing of FD Flexible Duct

Specifications of FD Flexible Duct


Article No.Part No.Wd. (W)Ht. (H)MaterialPkg Qty (pcs)
A0101.014.0001FD20G(V2)2020PP100
A0101.014.0002FD30G(V2)3030PP100
A0101.014.0003FD40G(V2)3835PP100
A0101.014.0004FD20W(V2)2020PP100
A0101.014.0005FD30W(V2)3030PP100
A0101.014.0006FD40W(V2)3835PP100
A0101.014.0007FD20B(V2)2020PP100
A0101.014.0008FD30B(V2)3030PP100
A0101.014.0009FD40B(V2)3835PP100
A0101.014.0010FD20G(V0)2020PP100
A0101.014.0011FD30G(V0)3030PP100
A0101.014.0012FD40G(V0)3835PP100
A0101.014.0013FD20W(V0)2020PP100
A0101.014.0014FD30W(V0)3030PP100
A0101.014.0015FD40W(V0)3835PP100
A0101.014.0016FD20B(V0)2020PP100
A0101.014.0017FD30B(V0)3030PP100
A0101.014.0018FD40B(V0)3835PP100
